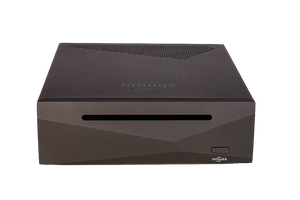

Innuos ZENmini Mk3 S - 1TB SSD

The Zen Mini S offers 3 additional features over the Zen Mini:

• 8GB Internal Memory (4GB in standard)
• SSD Storage (HDD in Standard)
• Power-loss protection circuit

Key Features

• 8GB Internal Memory
• SSD with power-loss protection circuit
• CD Ripper, NAS and Streamer
• Compact design with quiet, fanless operation
• Versatile HiFi connectivity with analog and digital outputs
• Roon Core and Endpoint
• Custom audio treated components
• Upgradeable with Linear Power Supply

Looking for a tidy solution for all your CDs and the files laying around on the computer? Need an easy way to stream and listen to all your favourite music? Now there’s a simple way to store, manage and play all of it: the ZENmini.

Convenient Design

With its compact footprint, low-power efficiency, quiet operation and range of connectivity, the ZENmini is a convenient and discreet music server for all your Digital Audio needs - from CD ripping to purchased downloads, Internet Radio to Spotify Connect.

Hi-Fi Engineering

The ZENmini S offers more than just casual usage. Floating optical and storage drives paired with a custom motherboard and premium components offer far greater musical performance than conventional computers and NAS drives.

Perfect CD Player replacement

Featuring additional Optical and Coaxial digital outputs as well has a high-resolution 24bit/192KHz Digital to Analog Converter (DAC). This means you can now connect directly to all your favourite devices such as Soundbars, AV Receivers or Integrated Amplifiers the easy way.

Powerful Performer

Using our own exclusive innuOS operating system, our servers are configured and optimised from the ground up for the perfect balance of performance and simplicity. Control your library from the comfort of your tablet or smartphone – no computer required.

SPECIFICATIONS

Audio outputs

• Digital Output  - USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA
• Coaxial S/PDIF up to 24bit/192KHz
• Optical S/PDIF up to 24bit/96KHz
• Analog RCA Output - up to 24bit/192KHz

Connectivity

• Ethernet - 2x isolated RJ45 Gigabit Ethernet - LAN and Streamer connection
• Other - 1x VGA (service connection only)
• USB - 4 x USB 3.0 (Backup)


Formats

• CD Formats  - Red Book
• Disc Compatibility -  CD, CD-R, CD-RW
• Audio format for stored CDs - FLAC (zero compression), WAV
• Audio Formats Supported for streaming and playing - WAV, AIFF, FLAC, ALAC, AAC, MP3

Sample rates

• Sample Rates  - 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , DSD64, DSD128
• Bit Depths - 16bit, 24bit, 32bit

User control surfaces

• Web Interface - Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers
• Mobile - App for iPhone/iPad, Android and Windows 10


Hardware

• CD/DVD drive -TEAC Slot-loading drive
• Hard Drive - 1TB SSD
• CPU - Intel Quad Core N4200
• Memory - 8GB DDR3 (S Model only)


Streaming and storage

• UPnP/DLNA - UPnP Server DLNA device compatible
• USB - Connect and play to USB DACs (USB Audio Class 1 and Class 2, DoP)
• Average CD Storage Time - 5 minutes
• CD Metadata - FreeDB, MusicBrainz, Discogs, GD3

Requirements

• Network: Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates.
• Network router with at least one available ethernet port.
• Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal
• Music controller: Remote control app compatible with the Logitech Media Server (Free and Paid versions available) or Web Browser - Most modern web browsers and platforms are supported
• DAC/Converter: DAC with USB input supporting USB Audio Class 1, USB Audio Class 2 or DoP protocols

Power

• Mains Supply: Low ripple Power Adapter, 12V 5A, CEC Level V efficiency (Optional linear power supply)
• Power Consumption: 10W when idle, 15W Peak

 Physical

• Dimensions: 70 x 220 x 220 mm (H x W x D)
• Weight: 4 Kg
• In the box: Innuos ZenMini Music Server, AC/DC Power Adapter, UK or EU Mains Cable, 2m Ethernet Cable
