Chord LeylineX Installation Speaker Cable

€5.00

LeylineX has been designed to bring out the best performance from today’s increasingly sophisticated yet affordably priced electronics and loudspeakers and provide consistent and reliable service in environments where cables may be non-removable.

Chords latest XLPE dielectric brings a huge improvement over the previous (and more commonly used) PVC. This move follows the successful introduction of Taylon® as a phase-stable insulation material in the flagship SarumT and ChordMusic speaker cables and the subsequent roll-out of XLPE across our speaker cable ranges.

The original Leyline was always a high-performance, low-cost offering. Using a 16/2 conductor construction, Leyline was ahead of other 16/2 narrow gauge cables from launch, thanks to tin-plated copper conductors which performed two roles: preventing oxidisation (crucial for non-removeable cables where long-term performance is expected), plus improved high-frequency performance over longer runs; Leyline could deliver surprising results even over 100 m lengths.

LeylineX builds on the time-proven Leyline platform and brings the advantages of XLPE technology to a new low price point cementing its position as the market-leader in performance and value for hi-fi, home cinema and custom installations.

For installers, the cable is metre-marked and is supplied in an easy-access 152m pull-box; it comes with a EN50575 DCA-S2, D2, A1 CPR rating. It also features a rip-cord to aid stripping of the outer jacket.

SPECIFICATIONS

  • Conductor: Tinned Stranded Oxygen Free Copper
  • Insulation: XLPE
  • Configuration: Twisted pair
  • Shielding: None. Low smoke, zero halogen, outer jacket
  • AWG: 16AWG*1P, 19/29AWG
  • mm2: 1.31
  • Overall dia: 6mm
  • Options: Cable is supplied unterminated. Length options can be selected in the "Length" dropdown menu. Price per Metre.

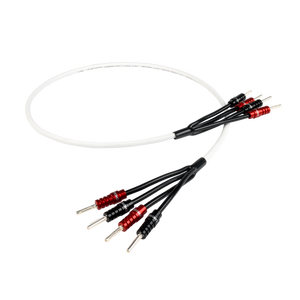

Please note this cable is supplied unterminated, photo is for illustration purposes only, connectors are not included.

Full Description

LeylineX has been designed to bring out the best performance from today’s increasingly sophisticated yet affordably priced electronics and loudspeakers and provide consistent and reliable service in environments where cables may be non-removable.

Chords latest XLPE dielectric brings a huge improvement over the previous (and more commonly used) PVC. This move follows the successful introduction of Taylon® as a phase-stable insulation material in the flagship SarumT and ChordMusic speaker cables and the subsequent roll-out of XLPE across our speaker cable ranges.

The original Leyline was always a high-performance, low-cost offering. Using a 16/2 conductor construction, Leyline was ahead of other 16/2 narrow gauge cables from launch, thanks to tin-plated copper conductors which performed two roles: preventing oxidisation (crucial for non-removeable cables where long-term performance is expected), plus improved high-frequency performance over longer runs; Leyline could deliver surprising results even over 100 m lengths.

LeylineX builds on the time-proven Leyline platform and brings the advantages of XLPE technology to a new low price point cementing its position as the market-leader in performance and value for hi-fi, home cinema and custom installations.

For installers, the cable is metre-marked and is supplied in an easy-access 152m pull-box; it comes with a EN50575 DCA-S2, D2, A1 CPR rating. It also features a rip-cord to aid stripping of the outer jacket.

SPECIFICATIONS

  • Conductor: Tinned Stranded Oxygen Free Copper
  • Insulation: XLPE
  • Configuration: Twisted pair
  • Shielding: None. Low smoke, zero halogen, outer jacket
  • AWG: 16AWG*1P, 19/29AWG
  • mm2: 1.31
  • Overall dia: 6mm
  • Options: Cable is supplied unterminated. Length options can be selected in the "Length" dropdown menu. Price per Metre.

Please note this cable is supplied unterminated, photo is for illustration purposes only, connectors are not included.
